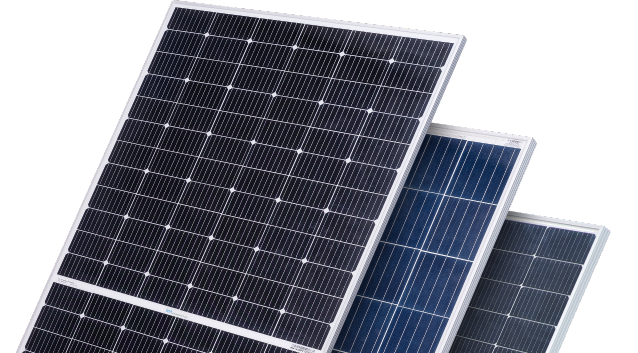

INA-144THC-WF-590

Insolation Energy Ltd. Is one of the leading Solar Companies in India reckoned for Top Quality PV Module Manufactacturing that is super efficient even in low light conditions. We produce a range of High effciency Slar PV Modules Including Poly/Mono PERC/ TopCon ranging From 40 WP-600 Wp.
FEATURES:
• Superior module efficiency efficiency as per  international benchmarks.
• Positive power tolerance.
• 27 years linear performance warranty for Mono PERC/TOPCon.
• PID free modules with long term reliability.


Technical Specification

Type INA-144THC-WF-590
Peak Power Pmax (Wp) 590
Maximum Voltage Vmpp (V) 44.05
Maximum Current Impp (A) 13.38
OpenCircut Voltage Voc (V) 51.24
Short Circuit Current Isc (A) 14.26
Module Efficiency (%) 22.84
Length* Width* Height (mm) 2278*1134*35
